Marantz 2230 Stereo Receiver

Jed Margolin

When my Marantz 2230 developed problems with the phono inputs I went to my Owner's Manual and was pleased to discover that it had come with schematics. It used to be common for consumer electronics products to come with the schematics. When is the last time you bought a piece of electronics that came with them?

Because the schematics for the 2230 don't seem to have been posted on the Internet, I am posting them here so that others may keep their 2230s working. I have scanned them in high resolution because I feel they deserve it.

The entire schematics were crammed onto one 11" x 17" sheet which I have scanned onto two 8.5" x 11" sheets. The sheets overlap so you can cut and tape them together.  You can download it here (1.4 MBytes PDF).

In order to make the schematics more usable I have also scanned them in ten sections in magnified form. Most are at 2:1. Others are somewhat less in order to make the sections each fit on one sheet.

The sheets are in PDF format and range from 300 KBytes to 700 KBytes each.

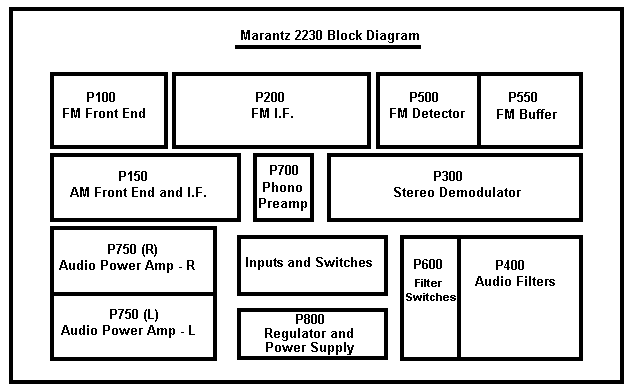

In order to avoid a huge file to download all at once I am making them downloadable separately using the following graphic. Just click on the section you want to download. The board numbers come from the schematics; the labels are mine and are based on a fast look at the circuitry.

Update: A jpeg version is available here. The file sizes are larger but produce a higher quality image.

Update: Since I first posted this article I have been pleasantly surprised by the number of people with 2230s, so I have scanned the Owner's Manual. You can download it here (3.0 MBytes PDF).

History of my Marantz 2230

I bought my Marantz 2230 in June 1974 from Lafayette Radio on Washtenaw Avenue in Ann Arbor, Michigan. I paid $415.95 for it including $16.00 sales tax. In today's dollars that would be $1590.80 .  Here is how I calculated it.

Although it was a high quality receiver, it wasn't the most expensive one available, but back then there were fewer electronic devices competing for your money. More about that here.

A word about how the receiver is designed and constructed. Looking at the schematic you will see mostly bipolar transistors, a few JFETs, and one IC.  As a consequence,  even after 30 years it is still very repairable.

The design used a number of separate PC boards. An advantage of this approach is that it makes it easier to keep signals on one circuit from leaking into another circuit. This can be a real problem when using one large circuit board containing sensitive analog circuits. The disadvantage is that all the circuit boards have to be wired together. In this receiver it was done with discrete wires; thus the assembly was very labor intensive. The dial assembly also contains a number of small parts which all had to be manually assembled together. On the other hand it was, and still is, an excellent performer and compares favorably to modern receivers. If you buy a digital receiver today will it still be working in thirty years? Maybe. If something breaks will it be repairable? I doubt it. (If it breaks the day after the warranty expires it will be more expensive to have it fixed than it will be to buy a new one.)

It is a shame that when the FCC has the broadcasters (both AM and FM) turn off their analog signals a few years from now and transmit digital only, this fine Marantz receiver as well as every fine (and not so fine) receiver built in the last eighty years will have nothing to listen to.

Now, for some pictures.

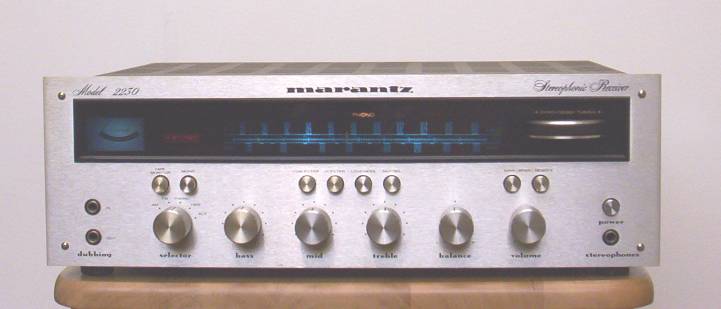

Marantz 2230 Front

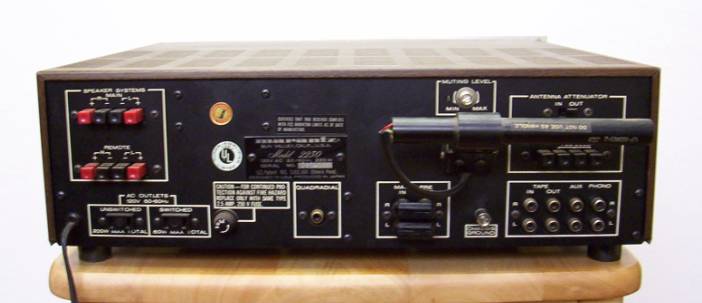

Marantz 2230 Back

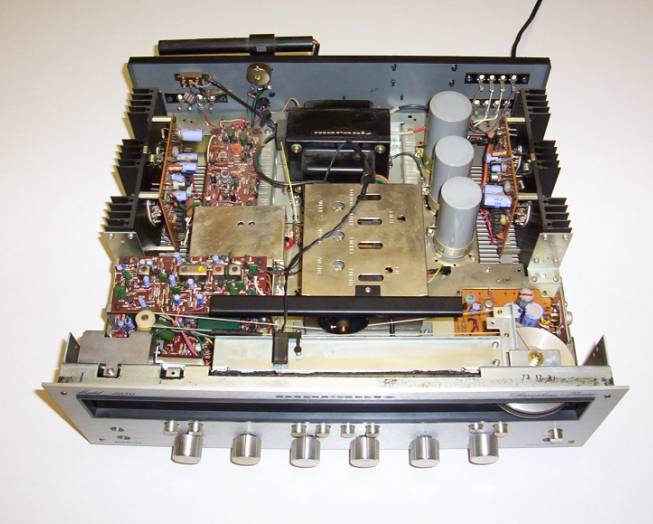

Marantz 2230 with Cover Removed

Notice the tuning wheel in the lower right. It gives a very nice feel to tuning in stations.

The shielded box immediately in front of the power transformer contains the main tuning capacitor (used for both AM and FM) as well as the FM RF input board P100. The shielded box to the left of it contains FM Detector P500.

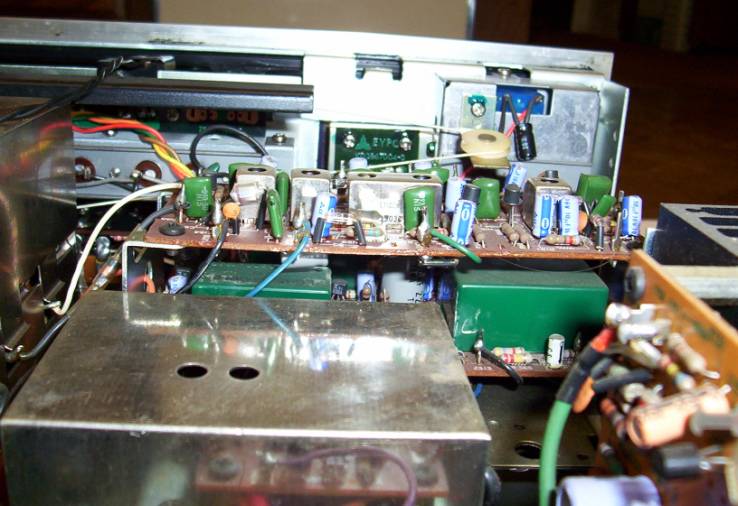

Marantz 2230 with Cover Removed - Side View

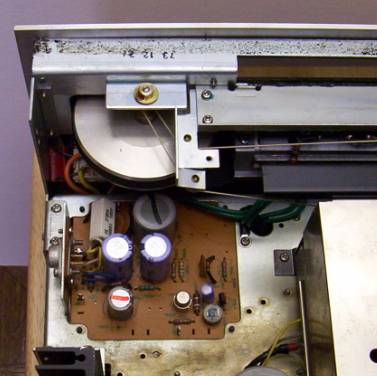

Marantz 2230 Voltage Regulator - P800

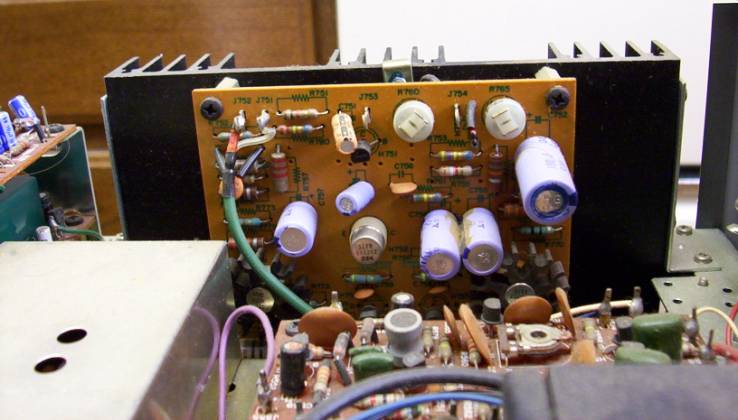

Marantz 2230 Power Amplifier - P750(L)

The amplifier is the vertical board.

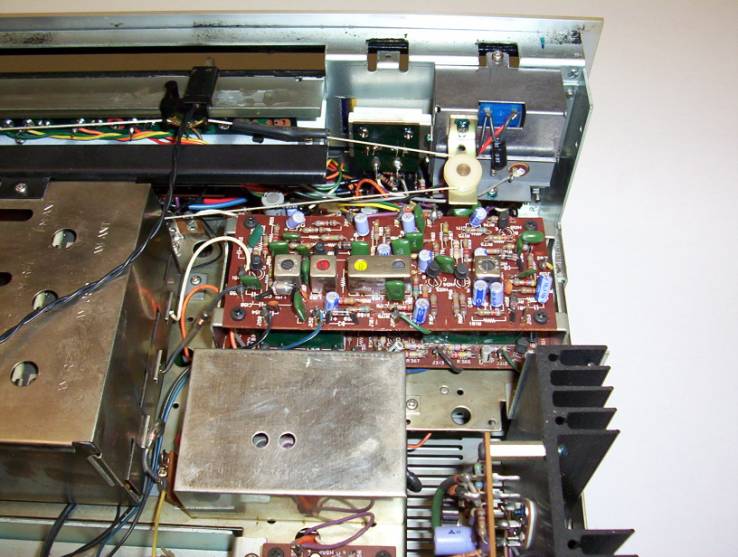

Marantz 2230 AM RF Board (next to the front panel) - P150


Notice the board underneath it. It's the Stereo Demodulator P300 . Here's another view of it.

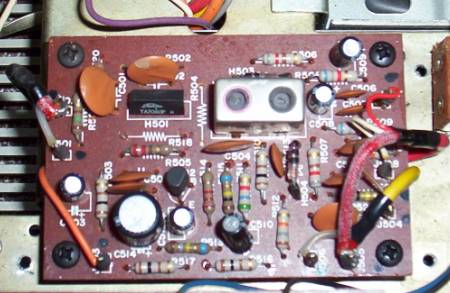

The square metal box in the foreground contains the FM Detector - P500

The P500 board contains the receiver's only integrated circuit, H501, a TA7060P Wide and Narrow Band Amp, FM/IF Limiter. The TA7060P is still available from NTE Electronics ( as NTE1104. The datasheet is here .

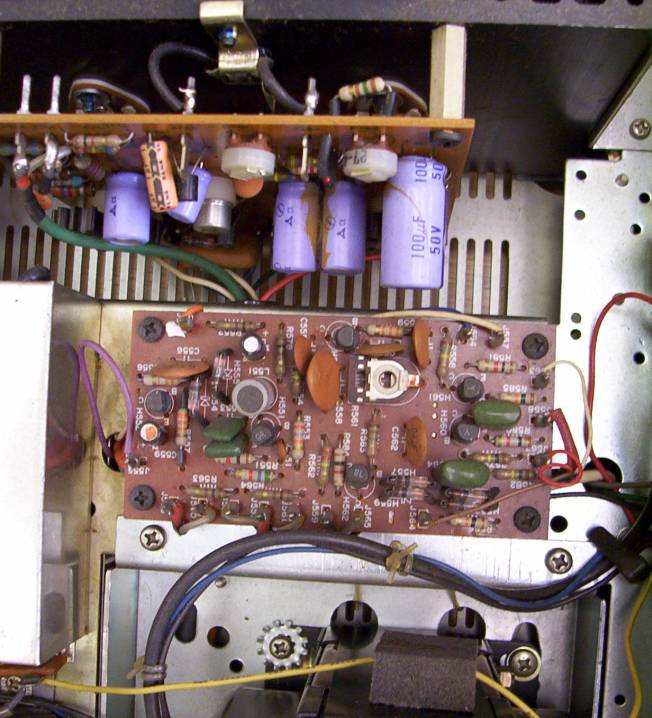

Marantz 2230 FM Buffer Amp  (below the power amp) - P550


But wait, there's more.

Marantz 2230 Bottom

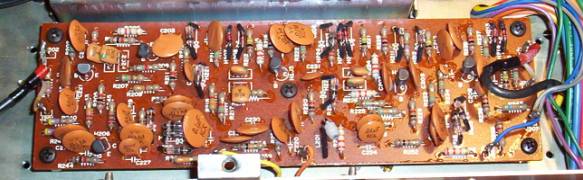

Some of the boards are already visible from the top of the chassis. Some are not. The rectangular box in the center of the chassis between the two amplifier boards contains FM IF Board P200.

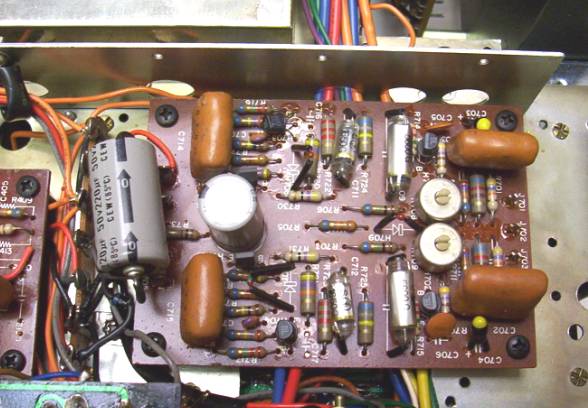

Marantz 2230 Phono Preamp - P700

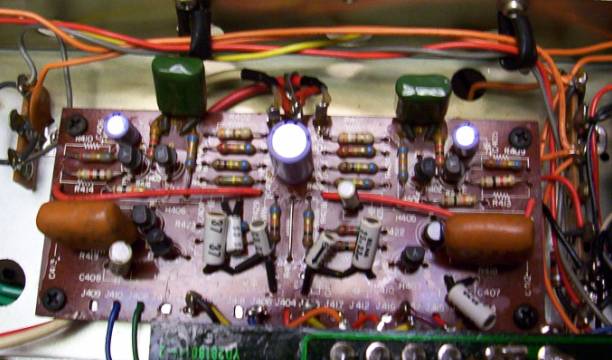

Marantz 2230 Filter Board - P400

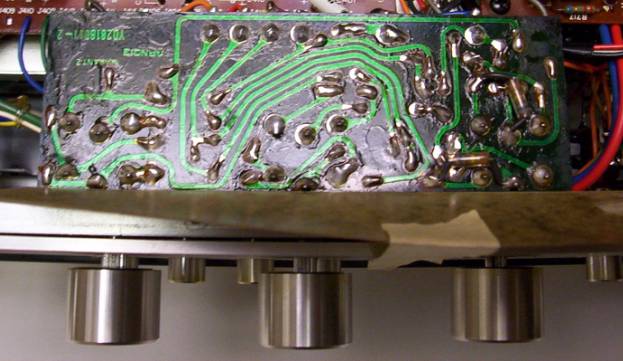

Marantz 2230 Filter Control Board - P600

The Bass, Mid, and Treble Controls are mounted on it along with a few filter components.

And yes, I did fix the phono preamp. Transistor H701 was bad. I replaced it with a 2N3904 and my Marantz 2230 now sounds great again.

Jed Margolin
San Jose, CA
April 20, 2004

Update:  8/7/04 Owner's Manual added
               9/9/05 Schematics in jpeg added

Please send comments here
